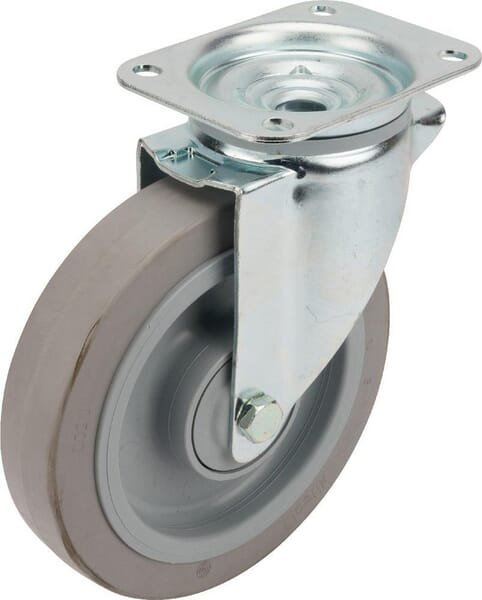

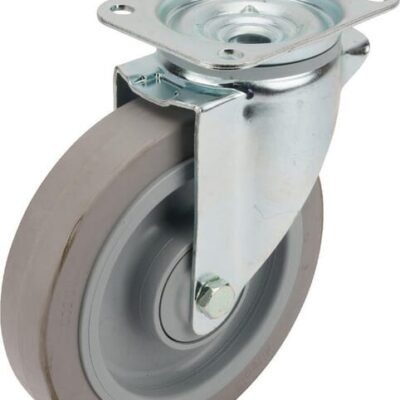

Specifikacija
| Dalies numeris | 3470UFP200P63 |
|---|---|
| EAN | 4031582378108 |
| Gamintojas | Tente |
| Vienetas | Vnt. |
| Wheel diameter | 200 mm |
| Wheel width | 46 mm |
| Wheels type | Swivel wheel |
| With break | No |
| Fitting type | Plate fitting |
| Dynamic load capacity | 400 kg |
| Static load capacity | 800 kg |
| Total height | 240 mm |
| Body material | Plienas |
| Wheel material | Rubber |
| Wheel hardness | A64 |
| Bearing type | Ball |
| Plate length | 137 mm |
| Plate width | 105 mm |
| Mounting holes distance – length side | 105-105 mm |
| Mounting holes distance | 75-80 mm |
| Center hole diameter | 11 mm |
| Offset | 55 mm |
| Swivel diameter | 310 mm |
| Swivel radius | 155 mm |
| Min working temperature | -20 °C |
| Max working temperature | 80 °C |
| Svoris | 2.7 kg |
| EN Standard | 12532 |
