Atsarginė detalė New-Elfin (020MT1P2T21A) – Detalė technikos priežiūrai, kai reikalingas konkretus dydis, tipas ir suderinamumas.

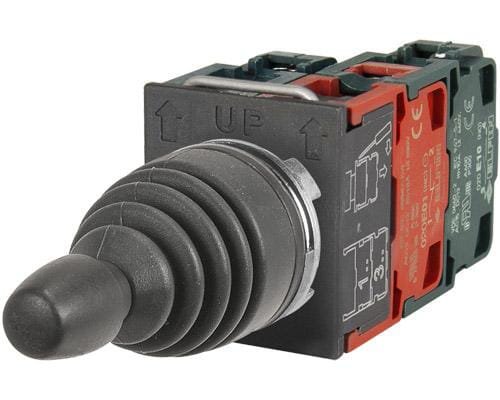

Produkto pavadinimas kataloge: Joystick
Pagrindinė informacija:
- Prekės kodas: 020MT1P2T21A
- Gamintojas: New-Elfin
- Vienetas: vnt.
- EAN: 8052878067298
Suderinamumas ir pritaikymas:
- Pritaikymas: Crane controllers Hydraulic controllers
- Benefits: Function can be self-determined very easily Can be used in various environments
Matmenys ir parametrai:
- Centre mounting, hole diameter: 20 mm
- Joystick length: 55 mm
Techniniai duomenys:
- Details: Self-configurable Available in black and grey (GR types)
- Product details: Mechanical service life: 1,000,000 cycles Protection: IP 66 In accordance with standard: IEC-EN60947-1, IEC-EN60947-5-1, UL508, CSA C22-2, UNI CEI EN 45545-2, CEI EN 61373 Operating temperature: -40°C / + 70°C P in the type number = switch is locked in the selected position T in type number = switch springs back to starting position after actuation For crane controls Hydraulic controls
- Technical info: It is not possible to switch to two positions simultaneously P in the type number: switch is locked in the selected position T in the type number: switch springs back to the starting position after being actuated
- Analogue output signal configurable: n/a
- Coder: n/a
- Colour front ring: Grey
- Insulation class: 66 69
- Locking in 0-position: No
- Material front ring: Zinc
- Number of actuation directions: 3
- Number of make-and-break contacts per direction: 1
- Number of normally closed contacts per actuation direction: 1
- Number of normally open contacts per actuation direction: 2
- Number of switch positions: 3
- With front ring: No
